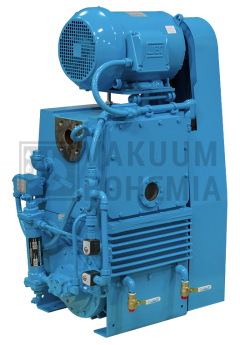

KTC-21

Vacuum pump KTC-21 is highly resilient and robust. IT is used especially in applications where an oil rotary vane pump cannot be used, either because it cannot deal with impurities or because it does not offer a sufficiently deep vacuum. Vacuum pumps with pistons do not have their stator and rotor contact each other and have an integrated oil pump. Long service life is secured by a slow-running motor. VAKUUM BOHEMIA, s.r.o. is the exclusive representative of Kinney / Tuthill for the Czech Republic and Slovakia.

Basic information:

Model: KTC-21
Series: KTC
Technology: Piston pumps

Parameters:

Pumping speed: 36 m³/h
Max. vakuum: 0,00026 mbar
Wattage: 1,1 kW
Connection: NPT 2"
RPM: 1725
Weight: 86 kg
Size: 638 x 241 x 595 (l x w x h) mm

Our services:

vacuum systems with piston vacuum pumps
sale of piston vacuum pumps
sale of spare parts
sale of accessories
on-site servicing of vacuum pumps
repair and overhaul of piston vacuum pumps

Applications:

metal coating
vacuum packaging
vacuum casting
chemical industry
vacuum welding
vacuum furnaces
